PCD
Diamond concentration: 88–93%
Cobalt binder: 8–12%
POLYCRYSTALLINE DIAMOND FOR CUTTING TOOLS
Polycrystalline diamond blanks engineered for high wear resistance, superior edge retention and precision machining of non-ferrous and abrasive materials.
PCD cutting materials are widely used in:
high-speed
precision machining
turning
milling
boring
grooving
What is PCD for Cutting Tools?
Polycrystalline Diamond (PCD) is an ultra-hard synthetic diamond material engineered for high-performance cutting tool applications. Manufactured using high pressure and high temperature (HPHT) technology, micron diamond particles are sintered together and permanently bonded to a tungsten carbide substrate, creating an exceptionally durable cutting material.
The resulting material combines exceptional wear resistance, edge retention and thermal stability, making PCD ideal for machining abrasive non-ferrous materials and advanced composites with outstanding machining accuracy and reliability.
*limited availability in micron grades
AVAILABLE GRADES
PSP
PSC
Premium quality PCD for machining metal matrix composites (MMC), carbon fiber composites (CFRP) and high-silicon aluminum alloys.
Premium quality PCD designed for improved conductivity and thermal performance.
PRODUCT SERIES
PSW
1.0 mm
1.6 mm
2.0 mm
OVERALL THICKNESS
3.2 mm
52 mm
58 mm
62 mm
PCD specifically engineered for woodworking applications.
DISC DIAMETERS
63 mm
0.3 mm
DIAMOND LAYER THICKNESS
0.5 mm

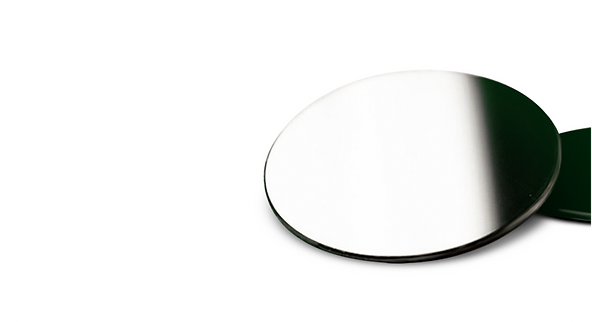

Full Round Discs
Rectangles
Squares
Triangles
Trapezoids
AVAILABLE FORMATS
Custom Shapes
M0.85
M2
M5
M10
Grade
Grain Size
Sub-Micron (0.5–1 μm)
2 μm
5 μm
10 μm
M25
25 μm
M35
35 μm
AVAILABLE PCD OPTIONS
LANDS PCD blanks are available in a variety of product series, grain sizes, dimensions and cut formats to meet specific tooling requirements.
M2-30
2–30 μm Mixed Grain
M45
M2-10
45 μm
2–10 μm Mixed Grain
PCD MICROSTRUCTURE
Diamond 10μm (M10)
5000
MAGNIFICATION
10 μm
1000
MAGNIFICATION
High-magnification images illustrating the grain structure of LANDS PCD materials. Different grain sizes are engineered to achieve specific combinations of wear resistance, edge quality and machining performance.
50 μm
Designed for precision machining of non-ferrous metals, composites and other highly abrasive workpiece materials, ensuring outstanding performance and long tool life.
Fiberglass Composites
Copper
Brass
Bronze
Gold
Silver
Aluminum
Aluminum Alloys
Tungsten Carbide
Carbon Ceramics
Graphite Ceramics
Epoxy Resins
Phenolic
Graphite Composites
Plastics
Rubber
Zinc Alloys

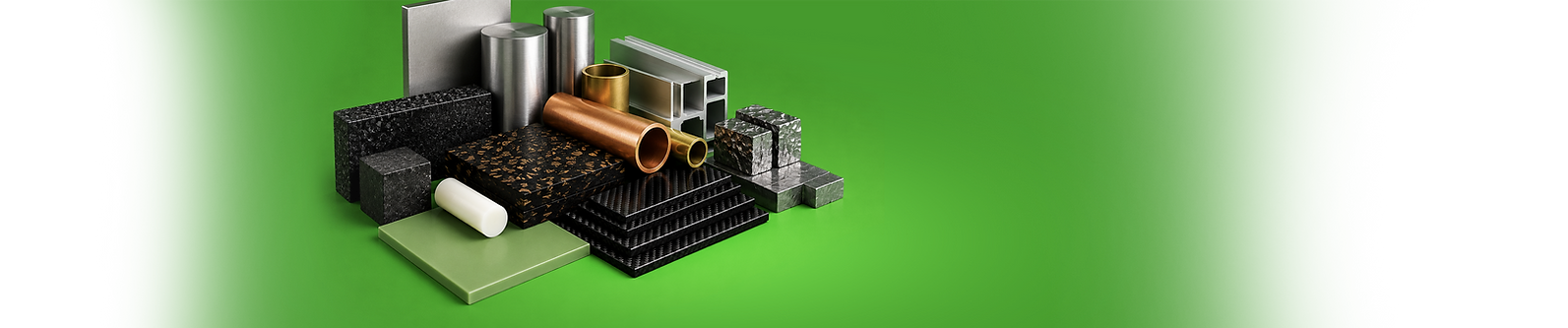

TYPICAL workpiece MATERIALS
Magnesium Alloys
HOW TO READ THE PART NUMBER
M25
25 micron grain size
PSP
Ø55
H1.6
D0.5
LSPCD-PSP-Ø55×H1.6×D0.5/M25
55 mm diameter
1.6 mm total height
0.5 mm diamond height
LANDS premium PSP grade PCD
Need Help Selecting the Right PCD?
Whether you already know the exact grade and dimensions or need assistance selecting the right configuration, our team is ready to help.
